This product is a low-temperature printing UV curing machine equipped with a UV shutter lampshade. It is equipped with dual 3kw mercury lamps with a main wave peak of 365nm. It has adjustable light intensity, efficient reflection and an upper and lower exhaust system.
About Us Sunkun Company Strength!

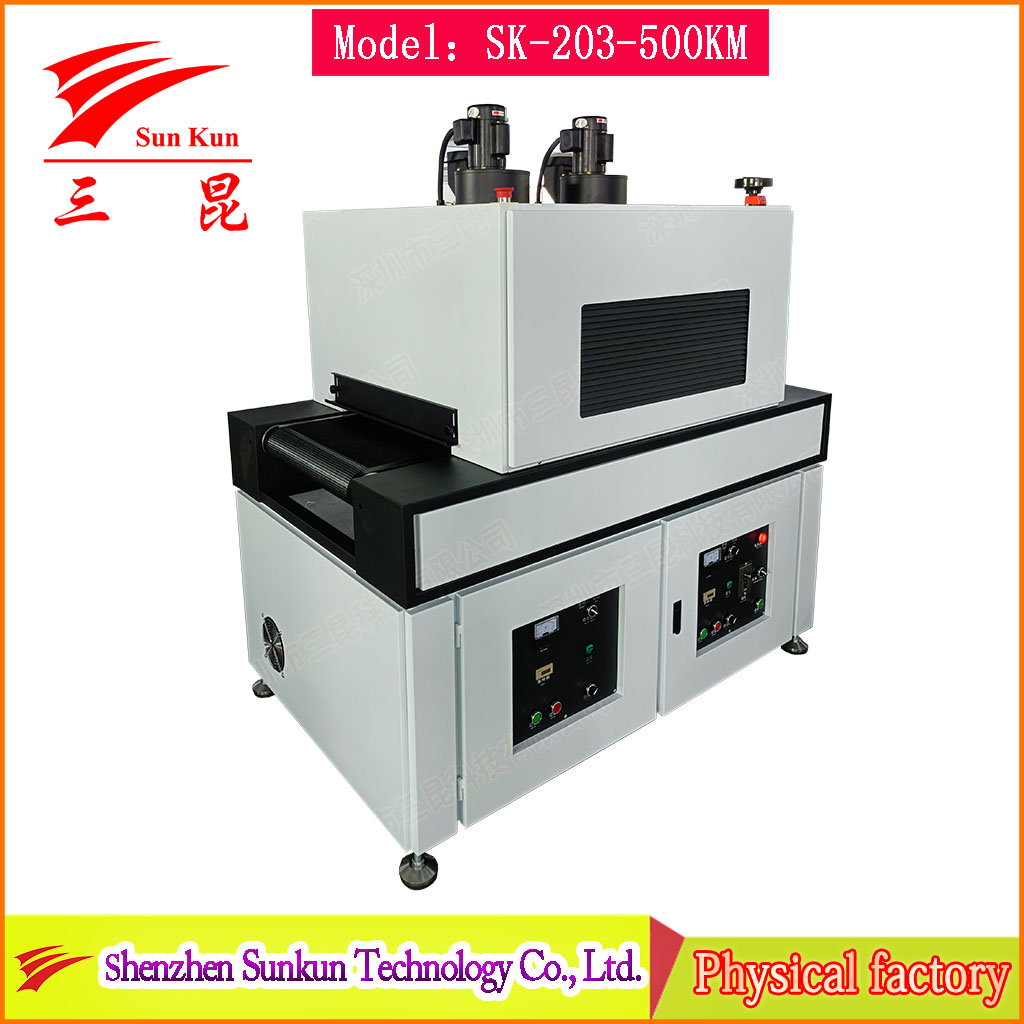

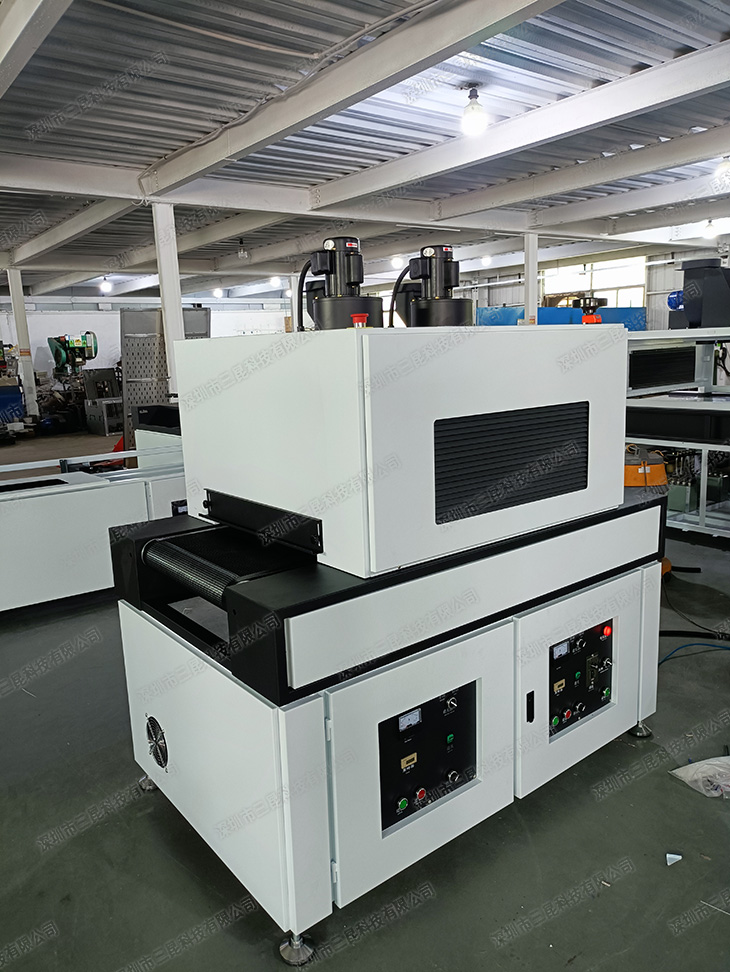

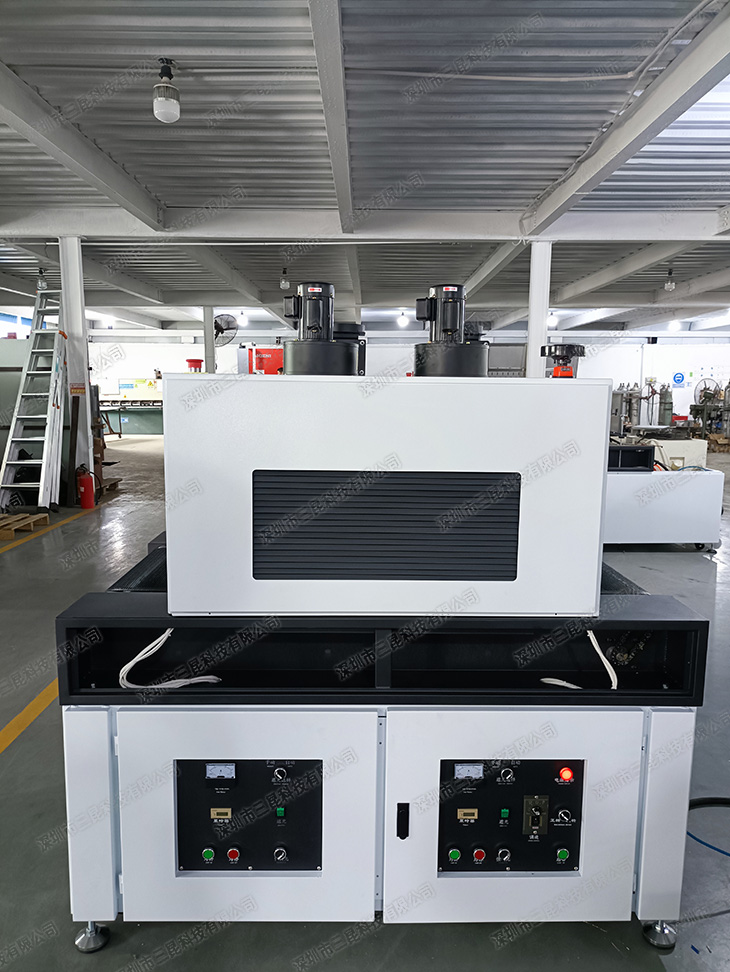

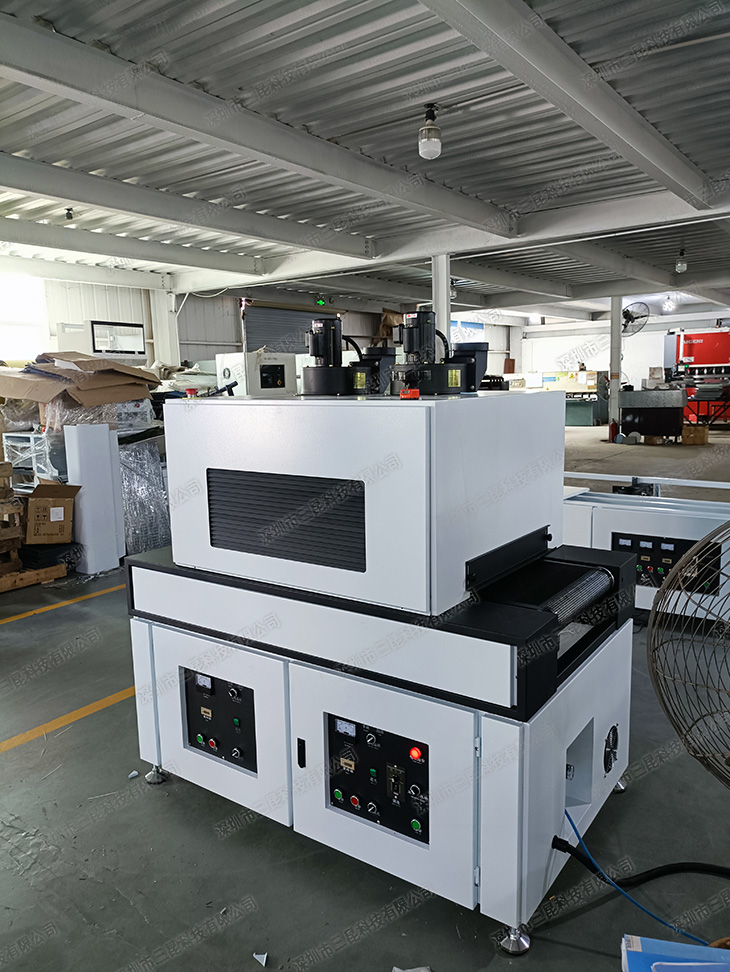

This is a printing low-temperature UV curing machine equipped with two 3kw mercury lamps with a total length of 620mm, an arc length of 500mm, and a main wave peak of 365nm. It has features such as UV lamp timer, adjustable light intensity (50% or 100%), imported reflector, manual/automatic shading, and upper and lower exhaust systems. Use Teflon mesh belt to convey materials, width 500mm, speed 3~30m/min (can be forward and reverse), entrance height 50mm, suitable for 380VAC50HZ power supply.
| UV band | 365nm |
|---|---|
| UV lamp power | 3kw*2 pieces (mercury lamp) |
| Conveying width | 500mm |
| Light intensity adjustment | 50%、100% |
| UV lamp total length | 620mm, arc length: 500mm |
| power supply | 380VAC50HZ |
